Per-vertex normals and illumination

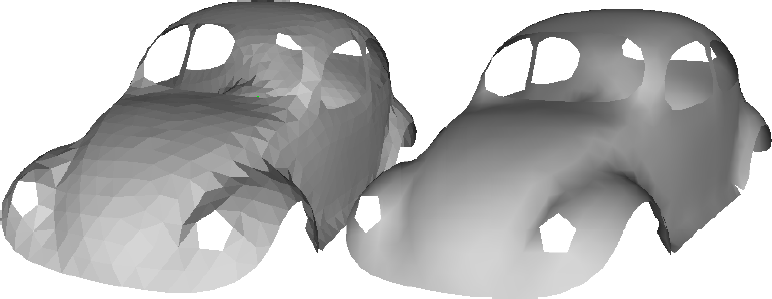

For smooth looking meshes, we define a normal per-vertex.
-
- Vertices are seen as samples on a smooth underlying surface
-
- Normals are used for illumination
-

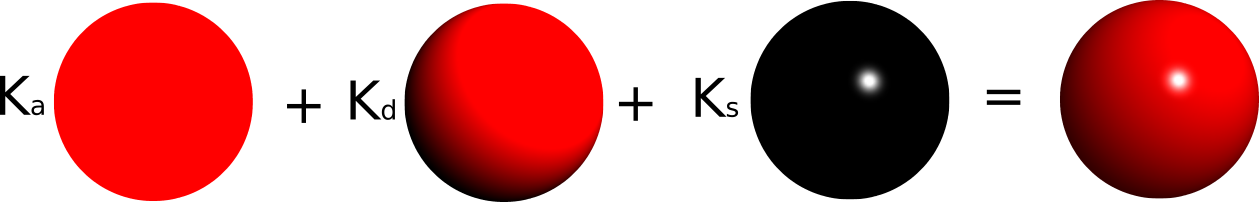

ambiant, diffuse, specular components
-
-
- Phong shading interpolates normals on each fragments of triangles, and compute illumination.
Possible automatic computation of normals: averaged normals of surrounding triangle.
\(\displaystyle n_k = \frac{\sum_{j\in{\mathcal{V}_k}} \hat{n}_j}{\|\sum_{j\in{\mathcal{V}_k}} \hat{n}_j\|}\), \(\mathcal{V}_k\): neighboring triangles.
\(\color{blue}{n_k}\)
\(\color{red}{\hat{n}_j}\)
